Features:
X
INTRODUCING THE
NEW
TEREX FINLAY 893
SCREENER
Terex® Finlay, Drumquin Road, Omagh, Co. Tyrone, Northern Ireland. BT78 5PN Head Office T: +44 (0) 28 82 418 700 E:
Stand: L6

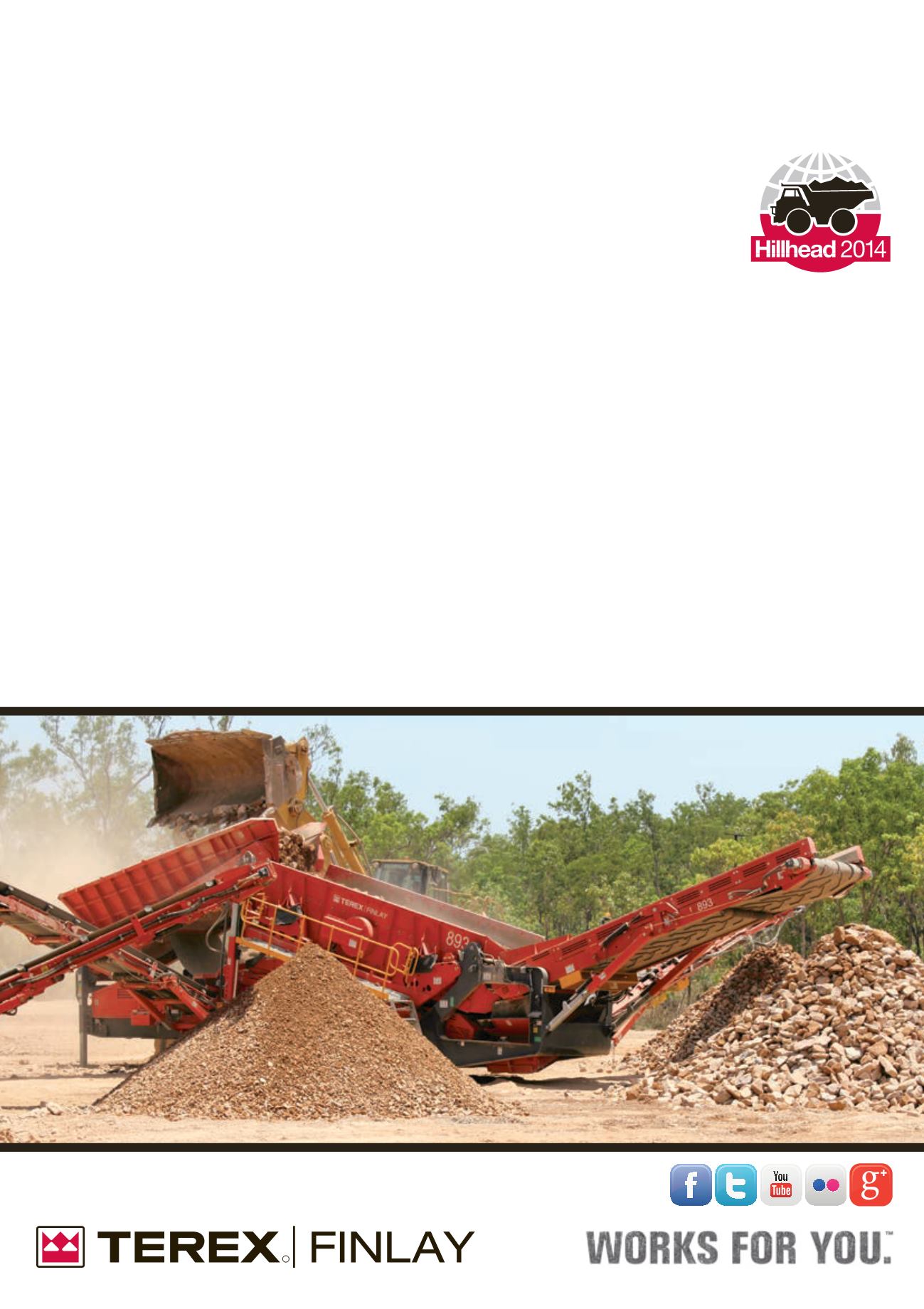

The Terex® Finlay 893 is a highly versatile and aggressive machine
engineered and built for working in large scale quarrying, mining,
construction and demolition debris, topsoil, recycling, sand, gravel, coal,
ore and aggregate applications. The plant has the capacity to process
at a rate of up to 800 tonnes per hour and can be fed either by a tracked
mobile crusher, shovel or an excavator.
Depending on the application the working angle of the aggressive
screenbox can be hydraulically adjusted to between 14 – 18°. A key
feature of the machine is the capability to change the working angle
of the hopper/feeder. The working position can be lowered so that it
can work with ease with a mobile crusher. The hopper/feeder working
position can be raised to provide a reduced feeder angle when operated
in direct mode from an excavator or shovel.
The screenbox top deck can be fitted with a variety of screening media
including; Mesh, Punch plate, bofor bars & Tines. The bottom deck can
be fitted with mesh, punch plate & cascade fingers.
This fully self-contained plant can be hydraulically folded and ready
for transport in less than 30 minutes making it the ideal machine for
large scale contract screening projects where a highly productive and
dependable screen is paramount.
Versatile aggressive screen box can be easily adapted to suit
many applications.
Modular configuration screen box with 6.1m x 1.8m (20’ x 6’) top
deck and 5.5m x 1.8m (18’ x 6’) bottom deck screen.
Screen box angle can be hydraulically adjusted to an angle
between 14 – 18°.
Screen box discharge end can be hydraulically raised 600mm
(24”) to facilitate efficient and easy media access and changing.
All stockpiling conveyors are hydraulic angle adjustable with
hydraulic extending head sections for maximum discharge &
stockpile height.
Apron feeder angle adjustable, lower position to accommodate
crusher feed, high position provides reduced feeder incline angle
when operated in direct feed mode from excavator/loader.
